Drive-on bench with secondary lifting system
REF NO GR16F.38021. x

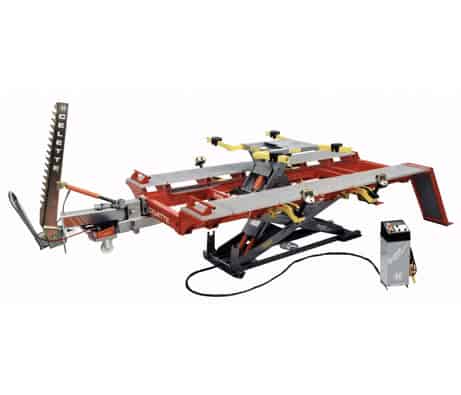

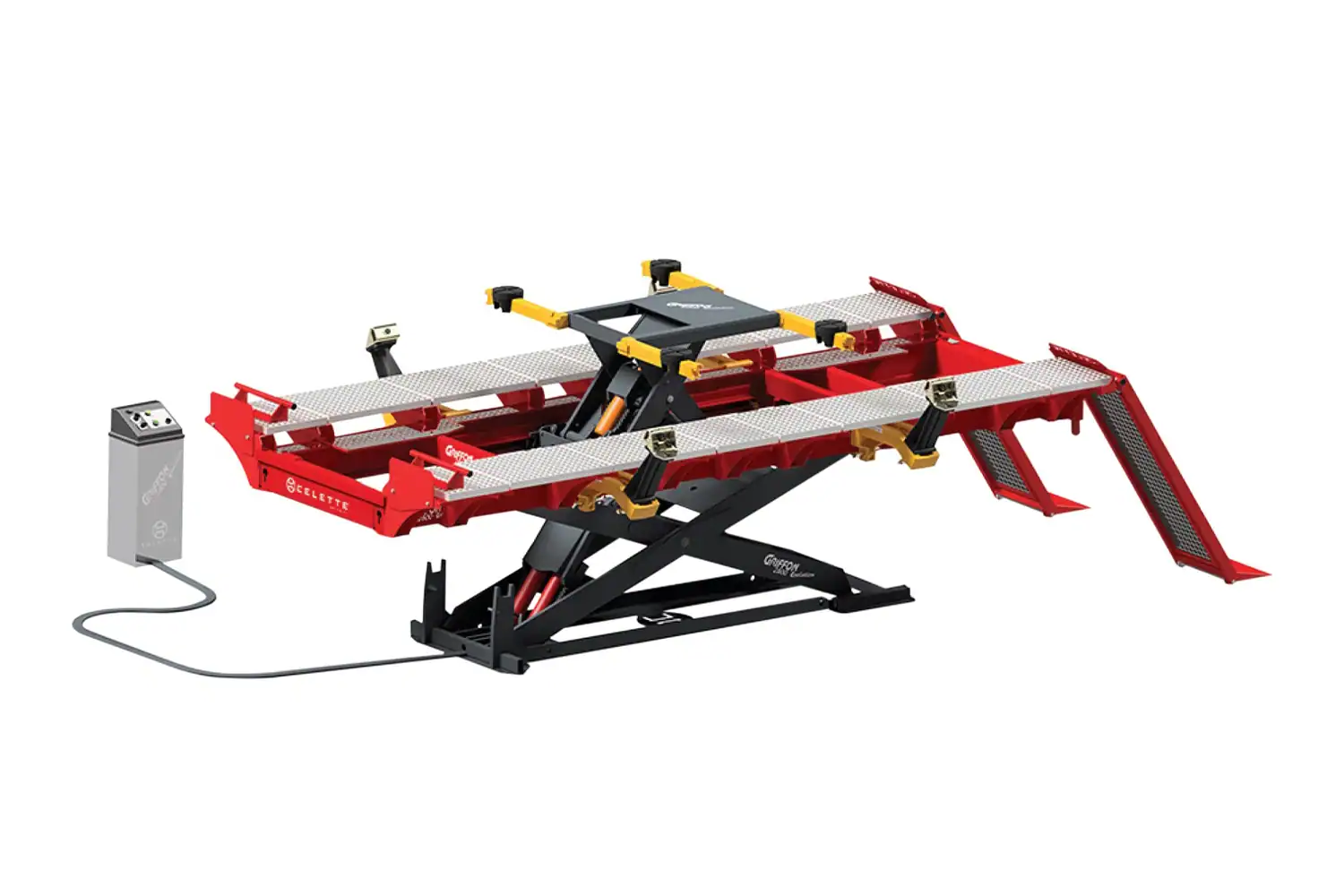

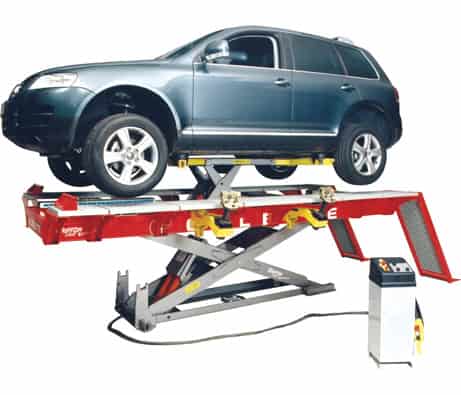

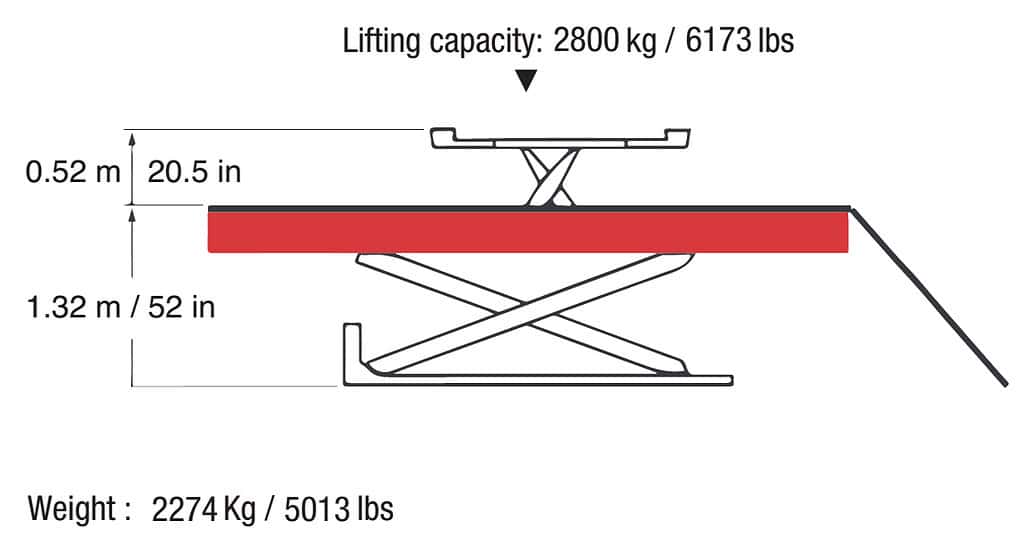

Griffon is a drive-on bench with a 2800 kg lifting system using a running desking plate. Dismantling the anchoring clamps and cross-members is not required while positioning the vehicle. The inner lifting system is operated by means of a remote control device.
Only a part of the runway decking plate (light but solid; made of composites) needs to be removed if the repairing process requires it. Extra heavy duty pulling unit with 10 Ton capacity.
| Technical Specification | Griffon – On Ground Installation | Griffon – In Ground Installation |
|---|---|---|
| Platform Length (excl. ramp) | 4370 mm. / 172 in. | 4370 mm. / 172 in. |
| Platform Length (incl. ramp) | 5600 mm. / 220 in. | 4370 mm. / 172 in. |
| Platform Width (excl. ramp) | 1115 mm. / 44 in. | 1115 mm. / 44 in. |
| Platform Width (incl. ramp) | 2050 mm. / 81 in. | 2150 mm. / 85 in. |
| Load Capacity | 2800 Kg / 6173 lbs | 2800 Kg / 6173 lbs |
| Min. Lifting height (starting height) | 520 mm. / 20.7 in. | 0 mm. / 0 in. |
| Max. Lifting height | 1300 mm. / 51 in. + 520 mm. / 20.7 in (Secondary lift) |
780 mm. / 30.7 in. + 520 mm. / 20.7 in (Secondary lift) |
| Weight of the platform | 2498 Kg / 5507 lbs | 2249 Kg / 4958 lbs |
| Power Supply Rate | 400V3Ph50Hz / 230V3Ph60Hz / 110V1Ph60Hz | 400V3Ph50Hz / 230V3Ph60Hz / 110V1Ph60Hz |
| Max pressure when lifting | 280 Bars | 280 Bars |
| Pulling Capacity | 10 Tons | 10 Tons |
| Functional Features | ||
|---|---|---|
| Repair Type (e.g., Light, Medium, Heavy) | Light/Medium/Heavy | Light/Medium/Heavy |
| Available Installation | Drive-On / In-Ground | Drive-On / In-Ground |
| Fixture Compatibility (e.g., Cameleon, MZ+) | YES | YES |
| Measuring System Compatibility (e.g., NAJA 3D) | YES | YES |
| Loading Options | NOT REQUIRED | NOT REQUIRED |
| REF NUMBER | DESCRIPTION |
|---|---|
| MZ450.007 | Accessories storage trolley |
| GR11.0074 | Trolley to position the vehicle on the bench |
| SVN05.301 | Sevenne pulling unit |
| 9124.013 | Supplementary vector pulling unit |
