Extra long bench with twin lifting system
REF NO GXL08.5812.x

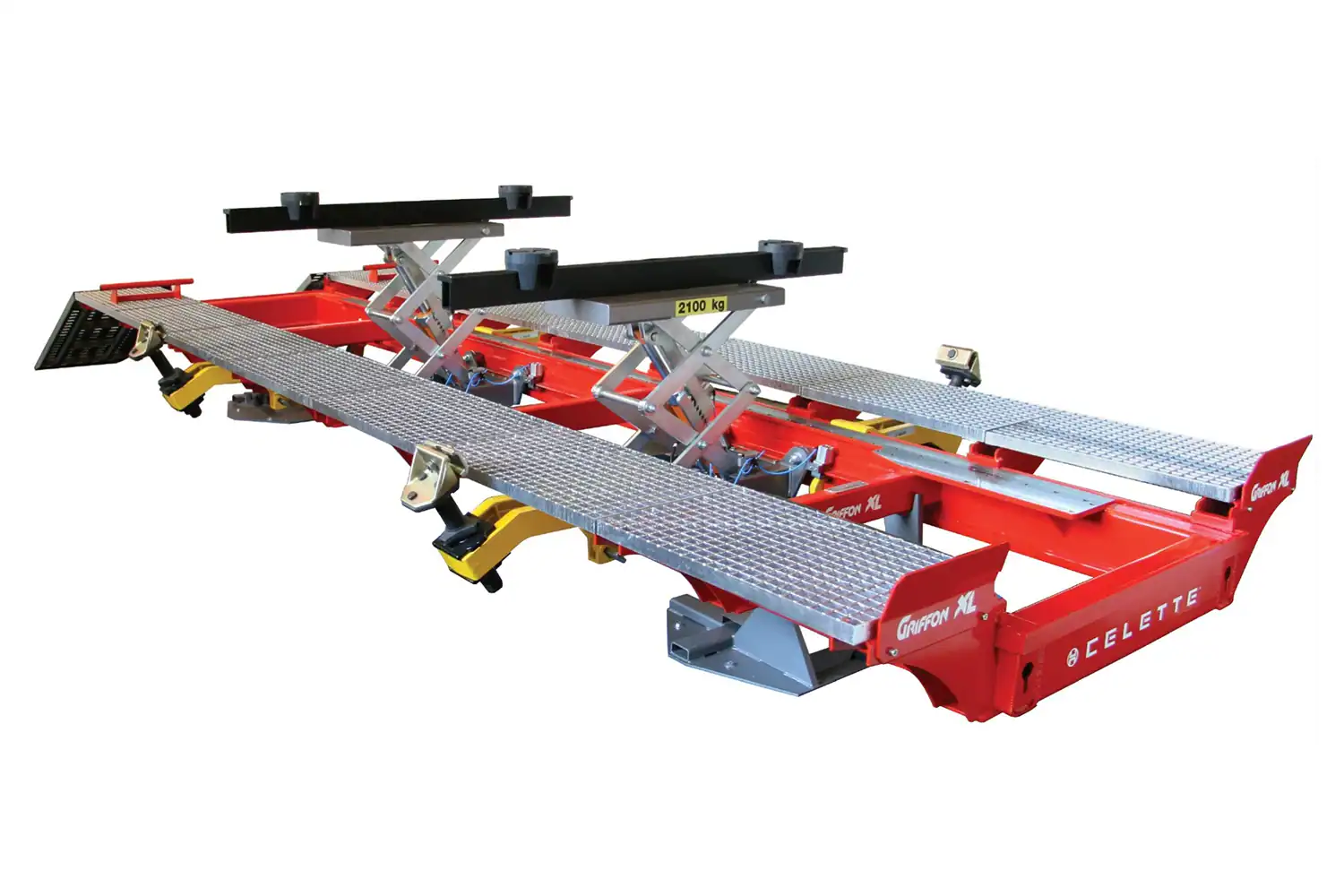

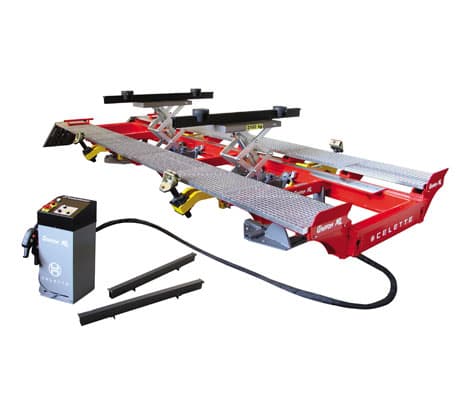

5.8 m long bench GRIFFON XL is specially designed for repairing commercial vehicles and SUV. This length enables you to complete simultaneous repairs at both the front and rear of the vehicle. This bench is supplied with 2 independent inner lifting units and a hydraulic tilting system.
| Technical Specification | |
|---|---|

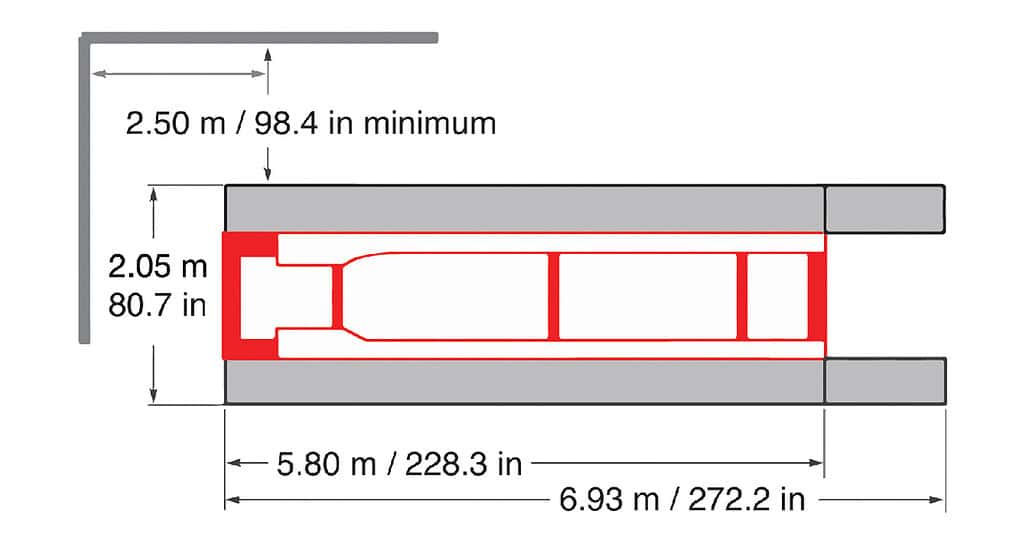

| Platform Length (excl. ramp) | 5800 mm. / 228 in. |
| Platform Length (incl. ramp) | 7030 mm. / 277 in. |
| Platform Width (excl. ramp) | 1115 mm. / 44 in. |
| Platform Width (incl. ramp) | 2050 mm. / 81 in. |
| Load Capacity | 5500 Kg / 12125 lbs |

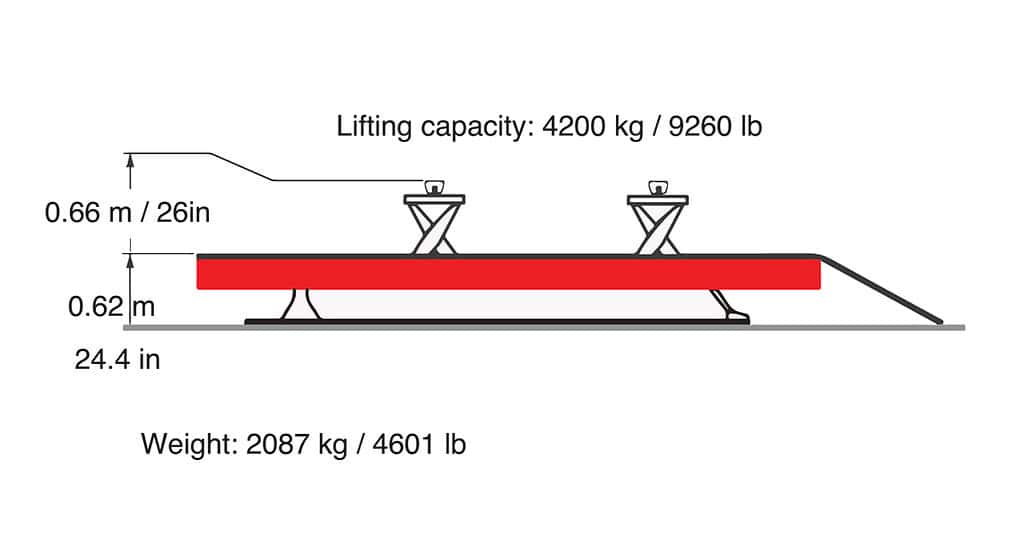

| Min. Lifting height (starting height) | 520 mm. / 20.7 in. |
| Max. Lifting height | + 660 mm. / 26 in. (Secondary lift) |
| Weight of the platform | 3247 Kg / 7158 lbs |
| Power Supply Rate | 400V3Ph50Hz / 230V3Ph60Hz / 110V1Ph60Hz |
| Max pressure when lifting | 280 Bars |
| Pulling Capacity | 10 Tons |
| Functional Features | |
|---|---|
| Repair Type (e.g., Light, Medium, Heavy) | Light/Medium/Heavy |
| Available Installation | Drive-On / On Ground |
| Fixture Compatibility (e.g., Cameleon, MZ+) | YES |
| Measuring System Compatibility (e.g., NAJA 3D) | YES |
| Loading Options | NOT REQUIRED |
| REF NUMBER | DESCRIPTION |
|---|---|
| MZ450.907 | Accessories storage trolley |
| GR11.0074 | Trolley to position the vehicle on the bench |
| SVN05.301 | Sevenne pulling unit |
| 9124.013 | Supplementary vector pulling unit |
