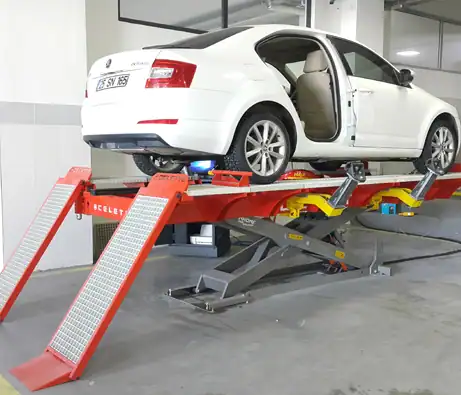

5-meter-long drive-on bench with scissor lift facilitates quick loading
REF NO RH18LM.4220.x

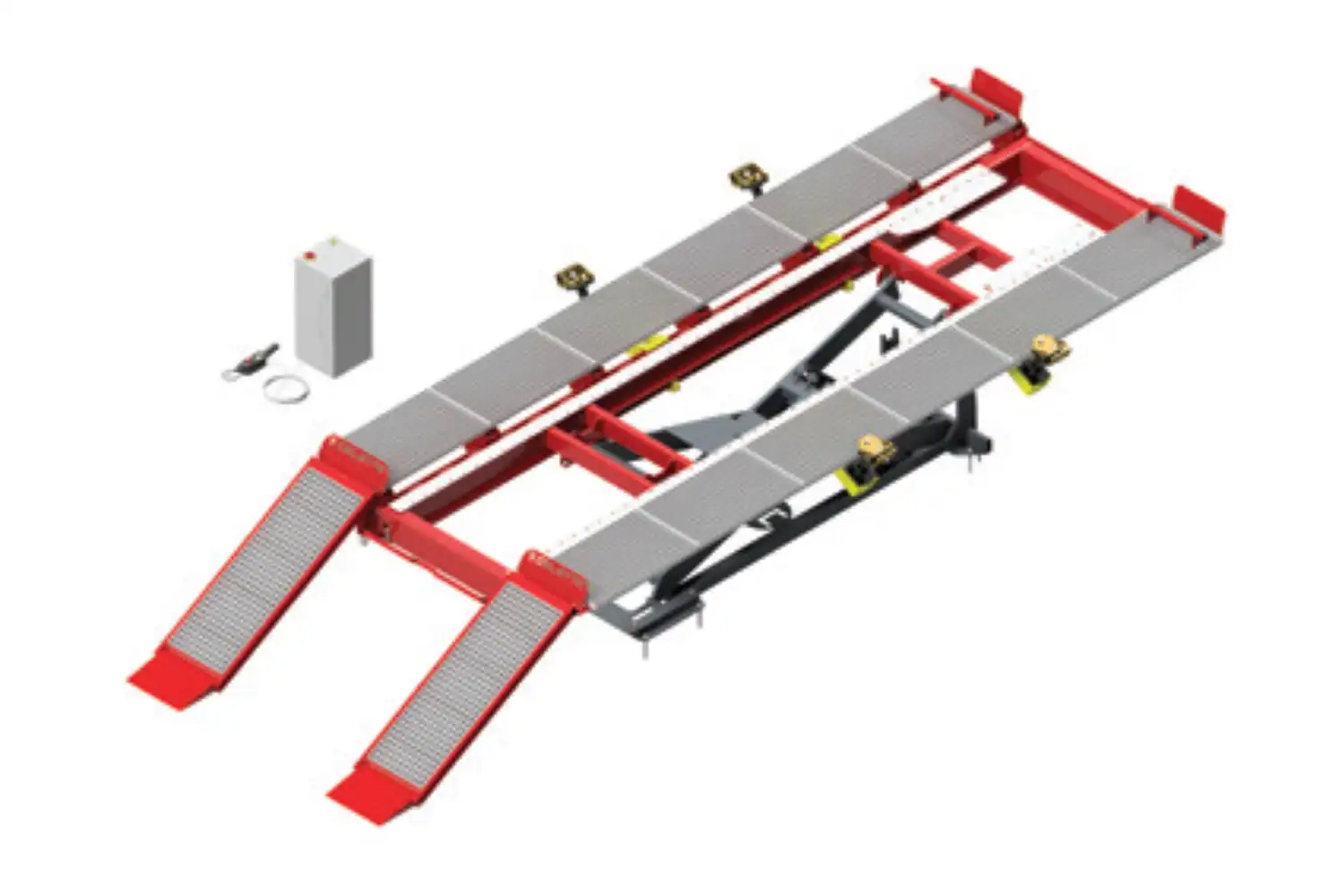

Rhone L is the longer version of Rhone drive-on bench with 5 m long and enhance lifting capacity of 4200 kg. Maximum lifting height is 1.36 m. Recommended for long wheel base vehicle. The detachable ram’s provides better access to the vehicle while pulling and measuring.

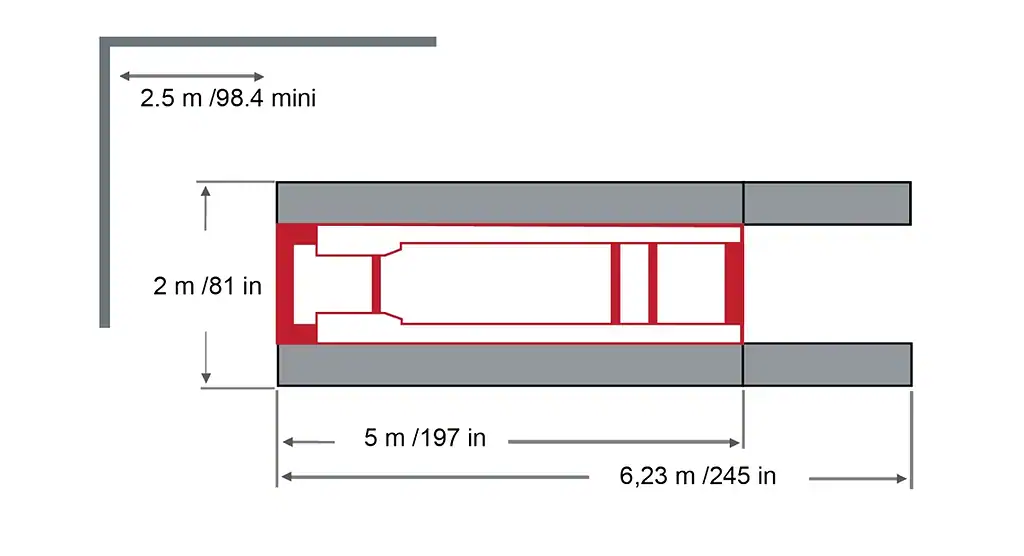

| Technical Specification | Rhone L – On Ground Installation | Rhone L – In Ground Installation |
|---|---|---|
| Platform Length (excl. ramp) | 5000 mm. / 197 in. | 5000 mm. / 197 in. |
| Platform Length (incl. ramp) | 6230 mm. / 245 in. | 4370 mm. / 127 in. |
| Platform Width (excl. ramp) | 1115 mm. / 44 in. | 1115 mm. / 44 in. |
| Platform Width (incl. ramp) | 2050 mm. / 81 in. | 2130 mm. / 83 in. |
| Load Capacity | 4200 Kg / 9260 lbs | 4200 Kg / 9260 lbs |
| Min. Lifting height (starting height) | 520 mm. / 20.7 in. | 0 mm. / 0 in. |
| Max. Lifting height | 1300 mm. / 51 in. | 960 mm. / 38 in. |
| Weight of the platform | 2471 Kg / 5448 lbs | 2122 Kg / 4678 lbs |
| Power Supply Rate | 400V3Ph50Hz / 230V3Ph60Hz / 110V1Ph60Hz | 400V3Ph50Hz / 230V3Ph60Hz / 110V1Ph60Hz |
| Max pressure when lifting | 280 Bars | 280 Bars |
| Pulling Capacity | 10 Tons | 10 Tons |
| Functional Features | ||
|---|---|---|
| Repair Type (e.g., Light, Medium, Heavy) | Light/Medium/Heavy | Light/Medium/Heavy |
| Available Installation | Drive-On | Drive-On / In-Ground |
| Fixture Compatibility (e.g., Cameleon, MZ+) | YES | YES |
| Measuring System Compatibility (e.g., NAJA 3D) | YES | YES |
| Loading Options | Axle Stand / C-Stands | Axle Stand / C-Stands |
| REF NUMBER | DESCRIPTION |
|---|---|
| MZ450.907 | Accessories storage trolley |
| T10S1 | Hydraulic set 10 T |
| SVN05.301 | Sevenne pulling unit |
| 9124.013 | Supplementary vector pulling unit |
