Mobile cum drive-on bench with integrated inner lifting system
REF NO GR05F.2022

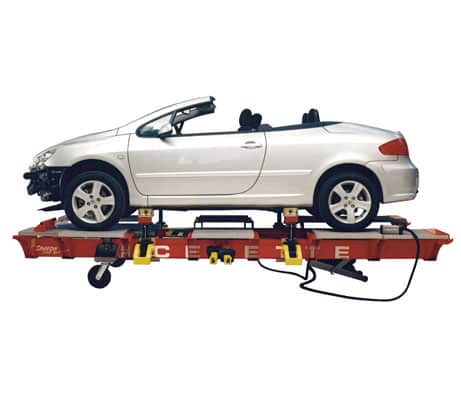

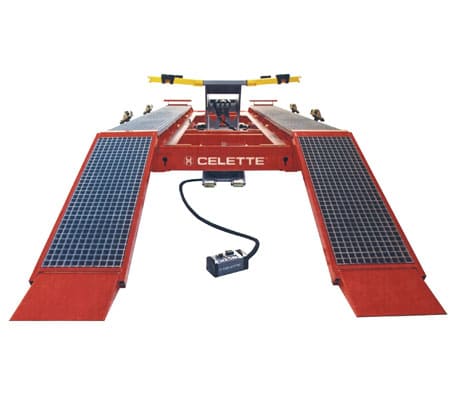

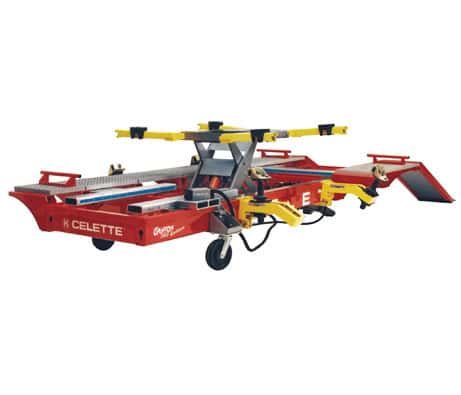

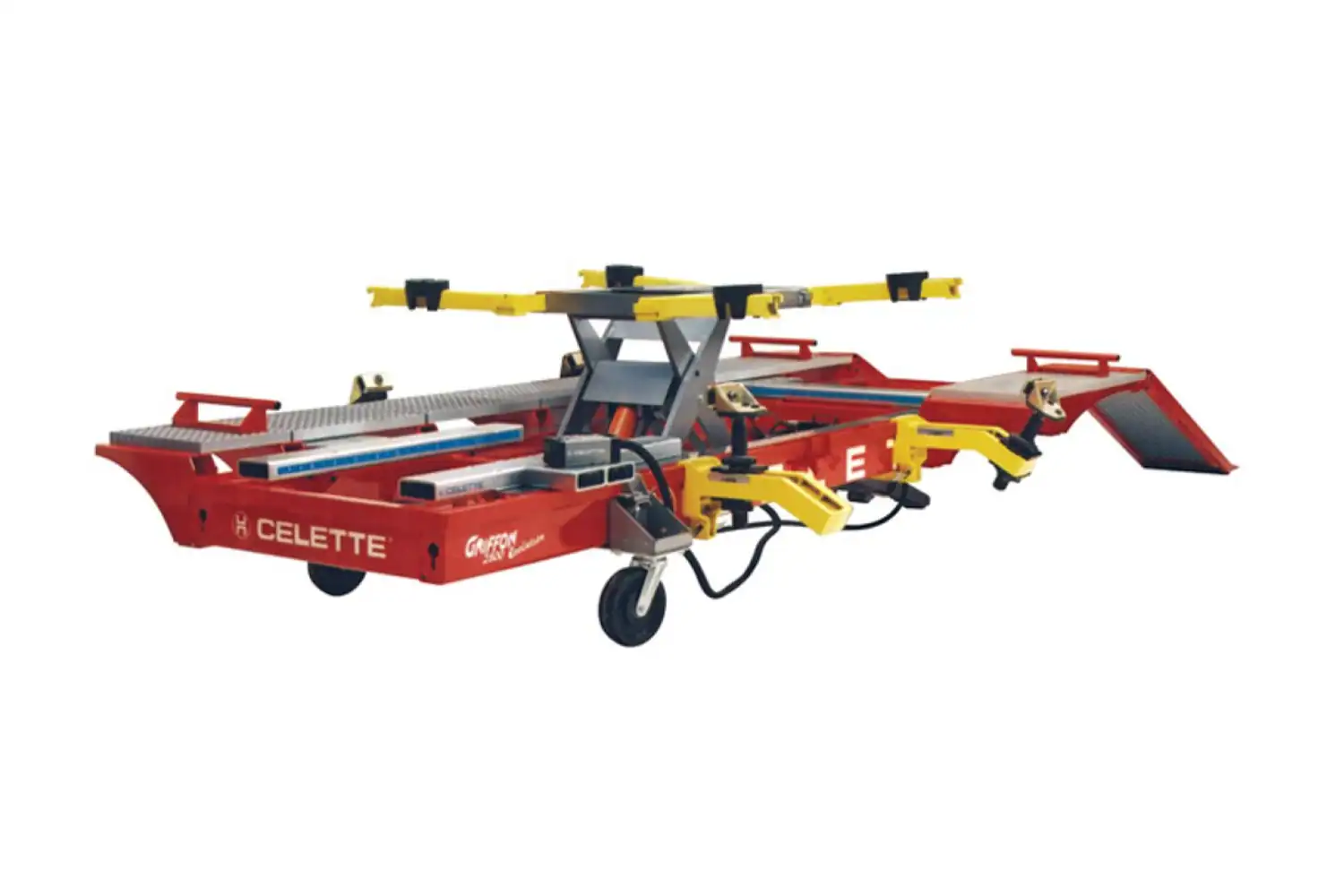

Griffon VB is a mobile cum drive-on bench that enables you to organize any work bay into a straightening area. The bench remains mobile with the vehicle in position, thanks to the castor wheels. This bench is equipped with an inner lifting unit which can be operated by means of a remote control system.
| Technical Specification | |
|---|---|

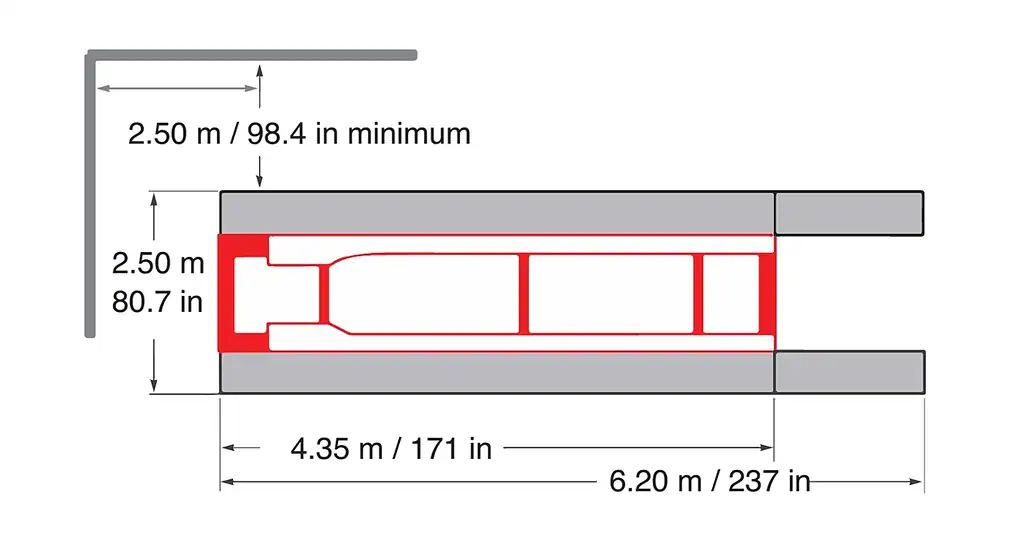

| Platform Length (excl. ramp) | 4370 mm. / 172 in. |
| Platform Length (incl. ramp) | 5600 mm. / 220 in. |
| Platform Width (excl. ramp) | 1115 mm. / 44 in. |
| Platform Width (incl. ramp) | 2050 mm. / 81 in. |
| Load Capacity | 2800 Kg / 6173 lbs |

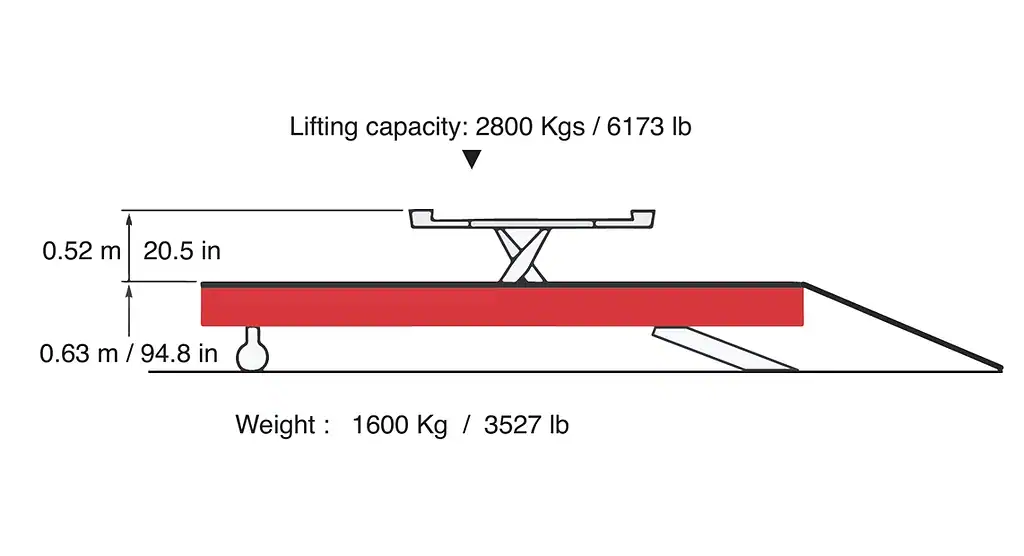

| Min. Lifting height (starting height) | 520 mm. / 20.7 in. |
| Max. Lifting height | + 520 mm. / 20.7 in. (Secondary lift) |
| Weight of the platform | 1720 Kg / 3792 lbs |
| Power Supply Rate | Hydraupneumatic lift |
| Pulling Capacity | 10 Tons |
| Functional Features | |
|---|---|
| Repair Type (e.g., Light, Medium, Heavy) | Light/Medium/Heavy |
| Available Installation | Drive-On / On Wheel |
| Fixture Compatibility (e.g., Cameleon, MZ+) | YES |
| Measuring System Compatibility (e.g., NAJA 3D) | YES |
| Loading Options | NOT REQUIRED |
| REF NUMBER | DESCRIPTION |
|---|---|
| MZ450.907 | Accessories storage trolley |
| GR11.0074 | Trolley to position the vehicle on the bench |
| SVN05.301 | Sevenne pulling unit |
| 9124.013 | Supplementary vector pulling unit |
