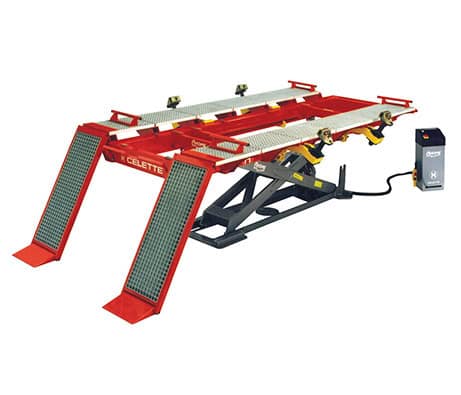

Drive-on bench with scissor lift
REF NO RH18M.4220.x

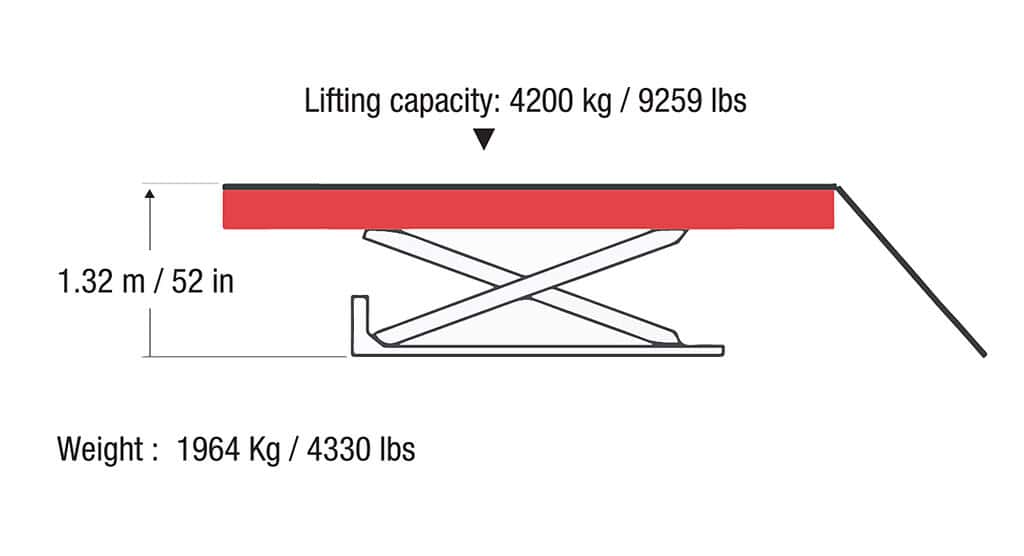

Rhone drive-on bench has been upgraded with a lifting capacity of 4200 kg and 1.32 m height. The most versatile bench facilitates quick diagnosis and straightening with MZ/MZ+ and Cameleon universal bracket sets, pre and post repair reports can be obtained with Celette measuring systems. Thanks to the Celette vehicle loading trolley which enable you to load the damaged vehicles.
| Technical Specification | Rhone – On Ground Installation | Rhone – In Ground Installation |
|---|---|---|

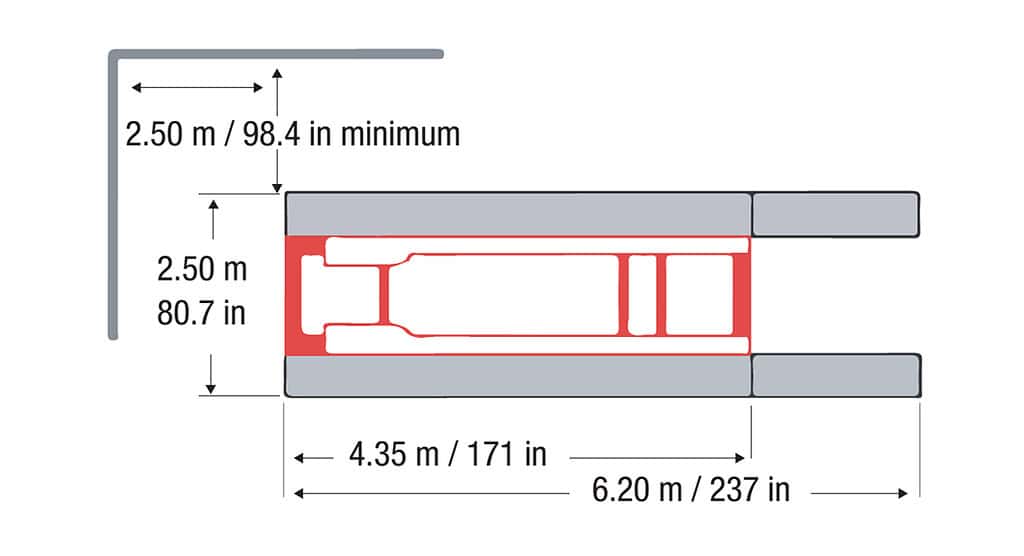

| Platform Length (excl. ramp) | 4370 mm. / 172 in. | 4370 mm. / 172 in. |
| Platform Length (incl. ramp) | 5600 mm. / 220 in. | 4370 mm. / 172 in. |
| Platform Width (excl. ramp) | 1115 mm. / 44 in. | 1115 mm. / 44 in. |
| Platform Width (incl. ramp) | 2050 mm. / 81 in. | 2130 mm. / 83 in. |
| Load Capacity | 4200 Kg / 9260 lbs | 4200 Kg / 9260 lbs |
| Min. Lifting height (starting height) | 520 mm. / 20.7 in. | 0 mm. / 0 in. |
| Max. Lifting height | 1300 mm. / 51 in. | 960 mm. / 38 in. |
| Weight of the platform | 2346 Kg / 5172 lbs | 2042 kg / 4501 lbs |
| Power Supply Rate | 400V3Ph50Hz / 230V3Ph60Hz / 110V1Ph60Hz | 400V3Ph50Hz / 230V3Ph60Hz / 110V1Ph60Hz |
| Max pressure when lifting | 280 Bars | 280 Bars |
| Pulling Capacity | 10 Tons | 10 Tons |
| Functional Features | ||
|---|---|---|
| Repair Type (e.g., Light, Medium, Heavy) | Light/Medium/Heavy | Light/Medium/Heavy |
| Available Installation | Drive-On / In-Ground | Drive-On / In-Ground |
| Fixture Compatibility (e.g., Cameleon, MZ+) | YES | YES |
| Measuring System Compatibility (e.g., NAJA 3D) | YES | YES |

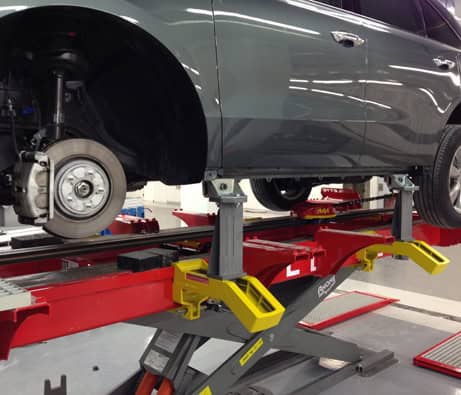

| Loading Options | Axle Stand / C-Stands | Axle Stand / C-Stands |
| REF NUMBER | DESCRIPTION |
|---|---|
| MZ450.907 | Accessories storage trolley |

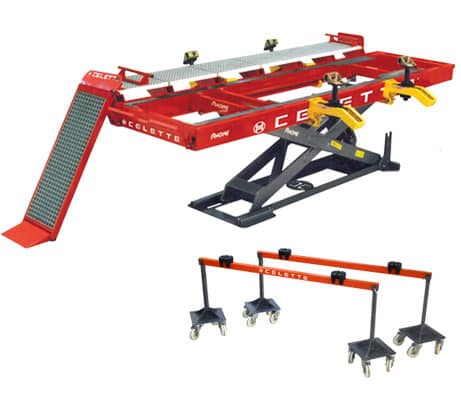

| GR11.0074 | Trolley to position the vehicle on the bench |
| 9188.033 | Tool to hold the chassis vehicle |
| 9124.013 | Supplementary vector pulling unit (10 ton) + extension + safety cable |
