Extra long mobile bench on wheels
REF NO SVN09XL.3112
Extended length bench on wheels is specially designed for repairing larger commercial vehicles. The key feature of this bench allows to position under a 2-post lift for loading and to easily move between work bays. The 5.8 m (19 ft) length is suitable for light trucks and commercial vehicles. The universal peripheral frame enables quick anchoring; adjustment of the clamps, wheels, transport handle; and multi-function supports
| Technical Specification | |
|---|---|

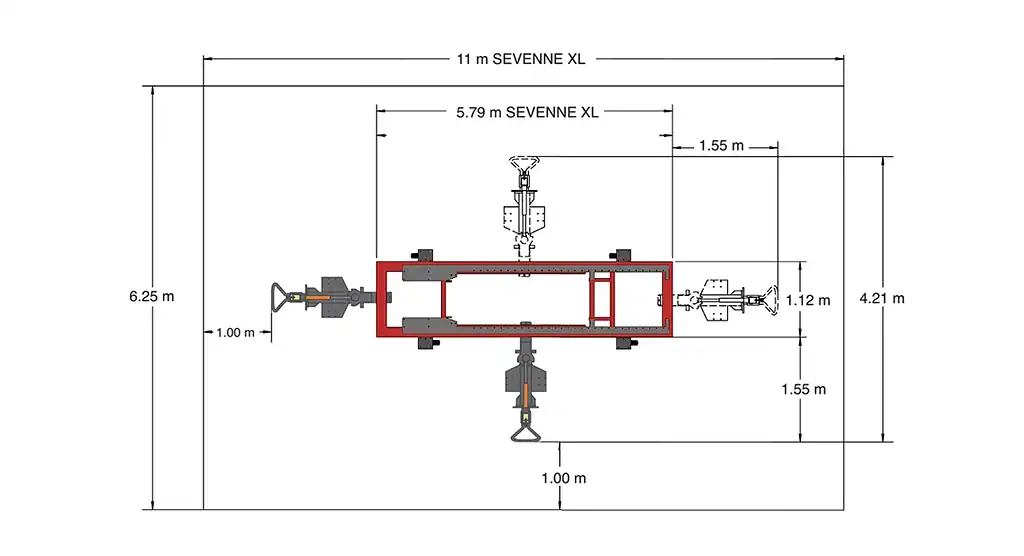

| Platform Length | 5800 mm. / 228 in. |
| Platform Width | 1115 mm. / 44 in. |
| Platform Width (incl. wheels) | 1470 mm. / 58 in. |
| Load Capacity | 4200 Kg / 9260 lbs |
| Height | 520 mm. / 20.7 in. |
| Weight of the platform | 998 Kg / 2200 lbs |
| Pulling Capacity | 10 Tons |
| Functional Features | |
|---|---|
| Repair Type (e.g., Light, Medium, Heavy) | Light/Medium/Heavy |
| Available Installation | On Wheel |
| Fixture Compatibility (e.g., Cameleon, MZ+) | YES |
| Measuring System Compatibility (e.g., NAJA 3D) | YES |
| Loading Options | Two-Post lift |
| REF NUMBER | DESCRIPTION |
|---|---|
| SVN09XL.3112 | Bench + 4 anchoring clamps + pulling unit + storage trolley |
| 9121.523 | Multi-function support |
| CSK.15111 | Pulling kit |
| ROLL.100 | Trolley displacement |
| SC.40014 | 4 Ton hydraulic kit |
| 9124.013 | Supplementary vector pulling unit |
| 9121.533 | Steering handle |
