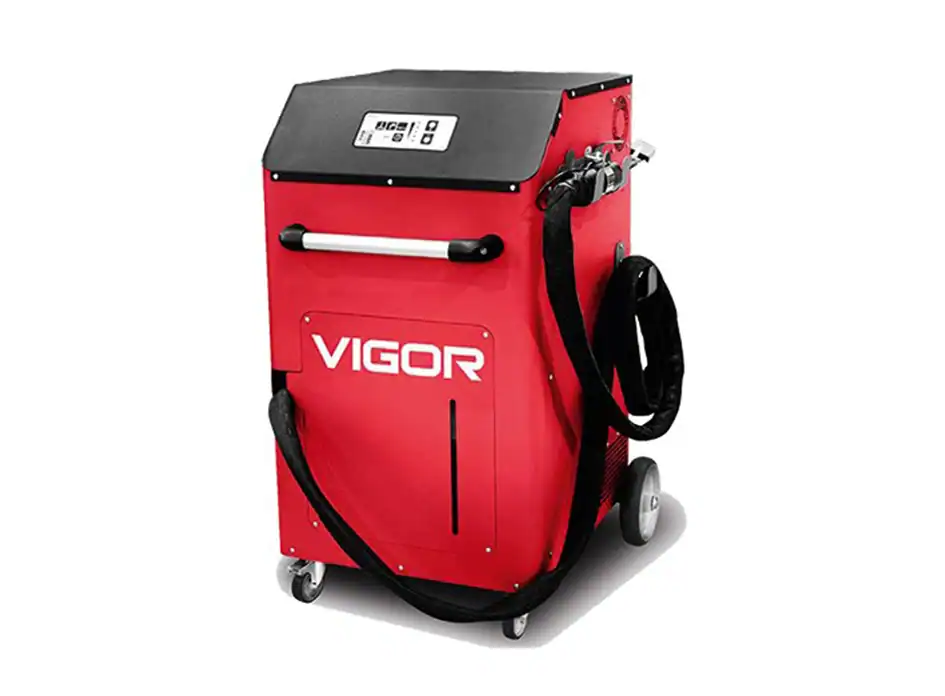

VIGOR – Induction Heater
The Celette heat inductors are ideal for a
wide range of applications such as:
– Bolts/nuts releasing
– Pin or bearing release and replacement
– Heating for straightening
– Pre-heating before welding / Bending
– Hardening / Annealing
– Adaptive inductance field reading (autotuning)
– Electronic safety protection
– Heating temperature level setting
– User friendly color touch control panel 5”
– Long inductor cable 4.25 m
| CEL.HDI13K230KB | CEL.HDI13K400KB | CEL.HDI18K400TC | |
|---|---|---|---|
| Equipment Dimension | 550x560x1009h mm. | 550x560x1009h mm. | 550x560x1009h mm. |
| Packaging Dimension | 800x850x1350h mm. | 800x850x1350h mm. | 800x850x1350h mm. |
| Weight | 156 Kg | 120 Kg | 130 Kg |
| Input Power | Input power 13 KW – 32 A Electrical connection IEC60309 | Input power 13 KW – 32 A Electrical connection IEC60309 | Input power 18 KW – 32 A Electrical connection IEC60309 |
| Power Supply | 230V/3P+T 50Hz | 400V/3P+T 50Hz | 400V/3P+T 50Hz |
| Working frequency | 15-30 Khz | 15-30 Khz | 15-30 Khz |
| Network cable | 8 m. | 8 m. | 8 m. |
| Degree of Protection | IP 21 | IP 21 | IP 21 |
| Electrical Protection | Main circuit breaker | Main circuit breaker | Main circuit breaker |
| Liquid cooling system | 20lt tank + Hydraulic heat exchanger with fan | 20lt tank + Hydraulic heat exchanger with fan | 20lt tank + Hydraulic heat exchanger with fan |
